The Imaging Source DMK 33UX174.AS, 1/1.2 " CMOS Pregius, Sony IMX174LL (progressive scan).

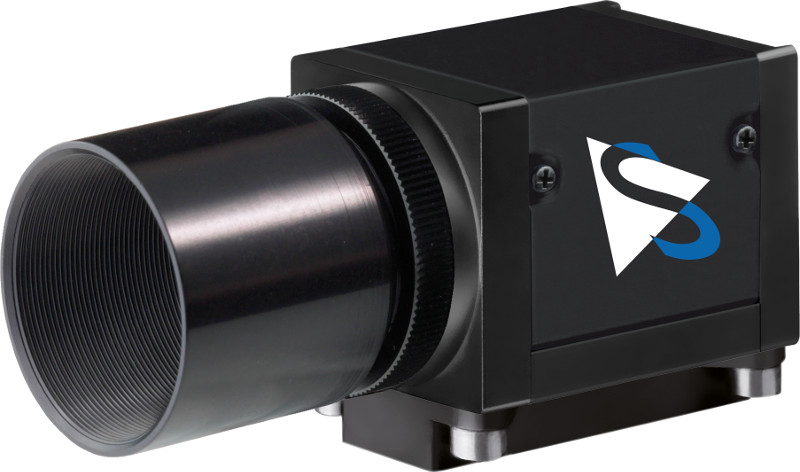

The Imaging Source DMK 33UX174.AS

Monochrome USB 3.0 astronomy camera without IR cut filter.

  • 1/1.2 " CMOS Pregius, Sony IMX174LL (progressive scan).
  • Resolution 1920 x 1200 pixels (2.3 MP).
  • Up to 162 FPS and 30 seconds exposure.
  • C mount.
  • Software included.

The camera ships with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

Sony IMX174LL 1/1.2 " CMOS Pregius Chip

The DMK 33UX174.AS ships with the monochrome Sony IMX174LL progressive scan CMOS Pregius chip. With its 1/1.2 " format, the CMOS Pregius chip produces a resolution of 1920 x 1200 pixels. Thanks to this extremely high quality, the Sony IMX174LL CMOS Pregius chip is also often used in other scientific, industrial and medical image processing applications.

No Compression, No IR Cut Filter

The DMK 33UX174.AS does not compress the video stream it outputs - the video data that is captured by the CMOS Pregius chip is outputted directly by the USB 3.0 connector. Similarly, the camera does not have an IR cut filter, a color filter, nor an other kind of electronic filter. The camera is, therefore, ideally suited to capturing very true-to-life images of the night sky.

High Speed Data Transfer Via USB 3.0

In order to transfer the vast amount of data created by the stream of uncompressed and lossless monochrome images to the host PC, you need a very high speed bus. Hence, the DMK 33UX174.AS is fitted with a fast USB 3.0 connector.

Included Software

The DMK 33UX174.AS ships with the device driver and the camera control and image acquisition application IC Capture.AS. Both of these run on Windows 10, Windows 7, Windows Vista and Windows XP (32 and 64 bit).

Software for Mac OS and Linux is available from third parties.

Technical details are subject to change
General Behavior
Video output format 8-Bit Monochrome, 16-Bit Monochrome
Dynamic range 8/12 bit
Optical Interface
IR cut filter no
CMOS Pregius specification IMX174LL
Type progressive scan
Format 1/1.2 "
Resolution H: 1920 pixel, V: 1200 pixel (2.3 MP)
Lens mount C mount
Electrical Interface
Connector type USB 3.0
Supply voltage 4.5 VDC to 5.5 VDC (via USB 3.0 cable)
Current consumption approx. 250 mA at 5 VDC
Mechanical Interface
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g
Manual Adjustments
Shutter (exposure time) 1/50,000 to 30 seconds
Gain 0 dB to 48 dB
Max. temperature (operation) -5 °C to 45 °C
Max. temperature (storage) -20 °C to 60 °C
Max. humidity (operation) 20 % to 80 % non-condensing
Max. humidity (storage) 20 % to 95 % non-condensing
