For visualization applications, it does not make sense to view the RAW image stream from the CMOS STARVIS chip. It must be interpolated, before it may be viewed or saved in common formats. IC Capture.AS perform color interpolation, thus reducing the load on the DFK 33UX290.AS's processor. Should, on the other hand, you prefer that the camera itself performs color interpolation, you can select the appropriate option in IC Capture.AS. This enables the transfer of data to reach the camera's maximum of 143 FPS. Finally, if you do not require color interpolation at all, you can turn it off completely and the image stream is written to disk in RAW format.

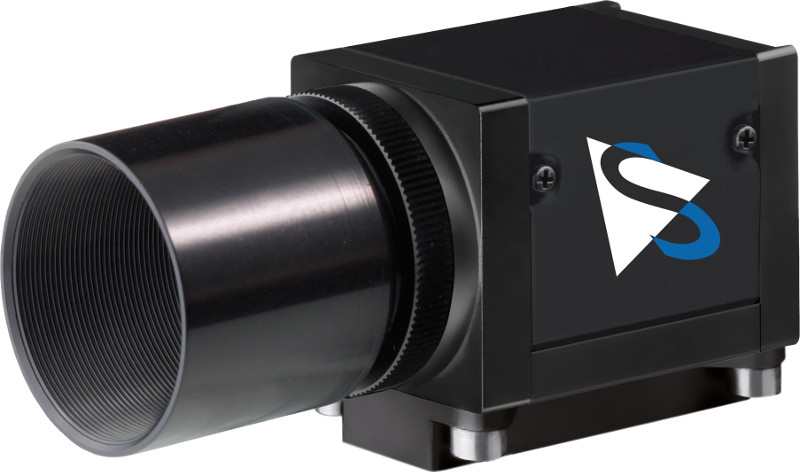

The DFK 33UX290.AS ships with the color Sony IMX290LQ progressive scan CMOS STARVIS chip. With its 1/2.8 " format, the CMOS STARVIS chip produces a resolution of 1920 x 1080 pixels. Thanks to this extremely high quality, the Sony IMX290LQ CMOS STARVIS chip is also often used in other scientific, industrial and medical image processing applications.
Unlike the human eye, CMOS STARVIS chips are sensitive to near infrared light (wavelengths over 700 nm). The DFK 33UX290.AS ships with an IR cut filter as standard and is thus suited to applications in which these wavelengths would lead to interference or undesirable results.
In order to transfer the vast amount of data created by the stream of uncompressed and lossless color images to the host PC, you need a very high speed bus. Hence, the DFK 33UX290.AS is fitted with a fast USB 3.0 connector.
The DFK 33UX290.AS ships with the device driver and the camera control and image acquisition application IC Capture.AS. Both of these run on Windows 10, Windows 7, Windows Vista and Windows XP (32 and 64 bit).
Software for Mac OS and Linux is available from third parties.
|Technical details are subject to change|
|Video output format||8-Bit Bayer (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24|
|Dynamic range||8/12 bit|
|IR cut filter||yes|
|CMOS STARVIS specification||IMX290LQ|
|Resolution||H: 1920 pixel, V: 1080 pixel (2.1 MP)|
|Lens mount||C mount|
|Connector type||USB 3.0|
|Supply voltage||4.5 VDC to 5.5 VDC (via USB 3.0 cable)|
|Current consumption||approx. 250 mA at 5 VDC|
|Dimensions||H: 29 mm, W: 29 mm, L: 43 mm|
|Shutter (exposure time)||1/50,000 to 30 seconds|
|Gain||0 dB to 48 dB|
|Max. temperature (operation)||-5 °C to 45 °C|
|Max. temperature (storage)||-20 °C to 60 °C|
|Max. humidity (operation)||20 % to 80 % non-condensing|
|Max. humidity (storage)||20 % to 95 % non-condensing|
